Combi Crusher

Powerful, precise demolition

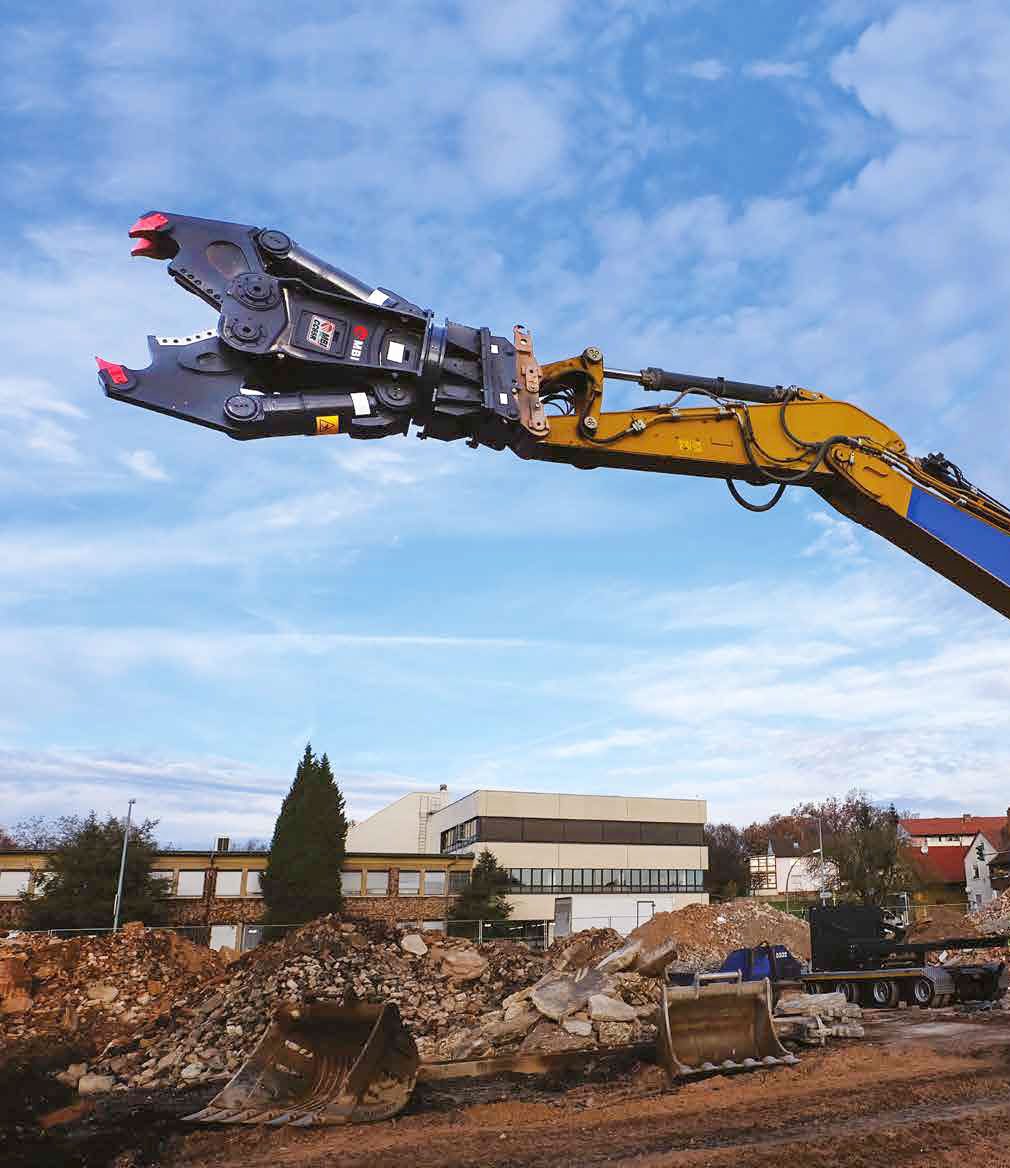

Combining heavy duty concrete breaking and metal cutting capacities in a single hydraulic attachment, the MBI Combi Crusher improves efficiency in each phase of operation. Powerful cylinders and a twin pin system make short work of breaking reinforced concrete while strong jaws are equipped with shears and cutting guides to deal to the metal.

Got questions? We’re here to help:

Request a quote

0508 21 22 23

Ideal for:

Primary demolition of heavily reinforced concrete and iron

Metal structures such as beams or rods

High-reach demolition

Severe operating conditions

Features

360° hydraulic rotation for precise positioning in high reach demolition

Reinforced steel jaws ensure maximum wear resistance

Interchangeable cast teeth and heat-treated blades deliver impressive durability

Patented Speed-Valve protects the hydraulic system from pressure spikes

Combi Crusher Specifications

	CC25R	CC35R	CC65R	CC90R
Excavator weight (ton)	25-30	30-40	60-70	75-95
Tool weight (kg)	2500	3500	6650	9600
Opening (mm, max/min)	1000/0	1100/0	1525/0	1750/0
Height (mm)	1960	2270	3000	3360
Hydraulic working pressure (bar)	320-350	320-350	320-350	320-350
Oil flow (L/min)	180-220	280-300	500-600	600-700
